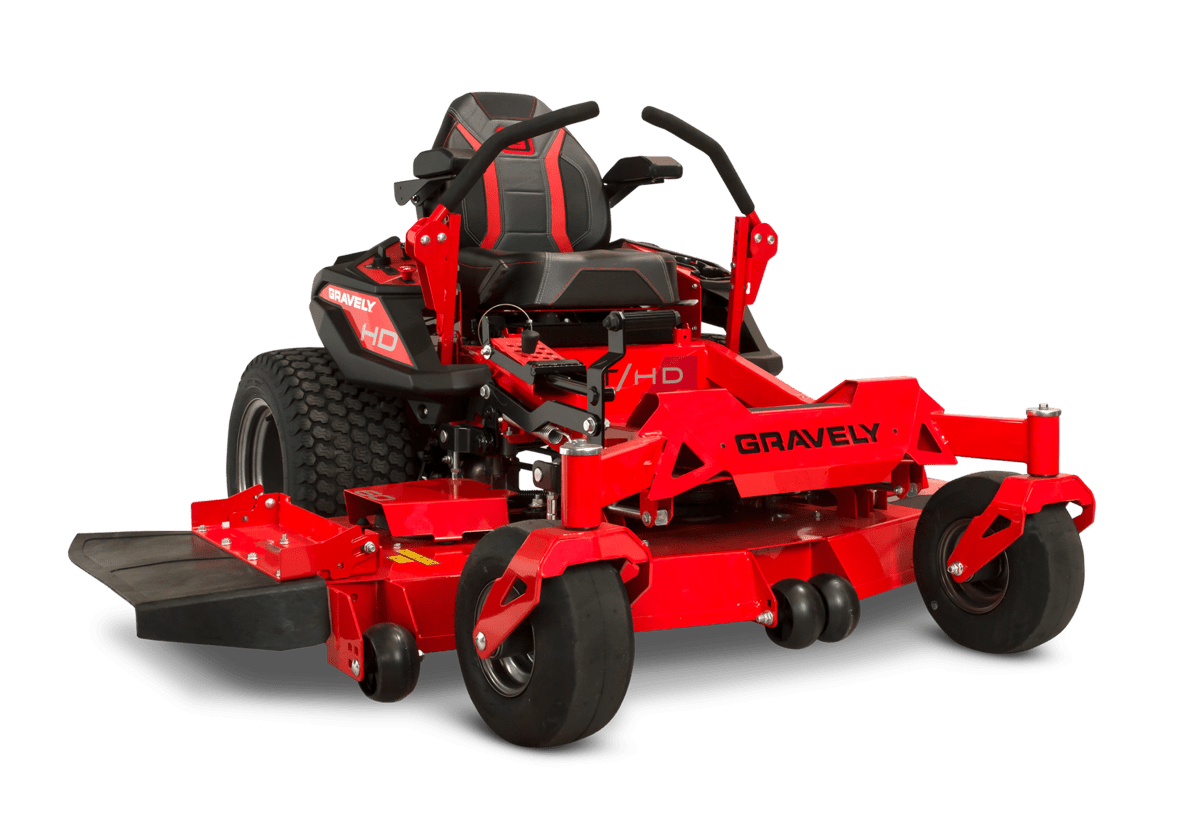

GRAVELY ZTHD 52 ZERO TURN MOWER
EXPECTATIONS ELEVATED.
Bringing commercial standards of power and durability to a residential unit, the ZT HD 52″ has it all. With an extensive cut selection, offering 15 cutting positions ranging from 1.5 inches to 5 inches, your neighbours are sure to be jealous of your lawn!
With a fully welded tubular frame, the ZT HD offers the integrity of a commercial frame in a residential package. Constructed with a Kawasaki V-Twin Engine, you know you are getting the best of the best. This unit brings more style, comfort, speed, and precision to create a perfectly manicured lawn with ease.
Not only is this unit fast, powerful and stylish, it’s also packed with:
15 Cutting positions ranging from 1.5 inches to 5 inches
X-Factor 3 Deck
Fully Welded Tubular Frame
23hp Kawasaki FR691 V-Twin Engine
Bringing commercial standards of power and durability to a residential unit, the ZT HD 52″ has it all. With an extensive cut selection, offering 15 cutting positions ranging from 1.5 inches to 5 inches, your neighbours are sure to be jealous of your lawn!
With a fully welded tubular frame, the ZT HD offers the integrity of a commercial frame in a residential package. Constructed with a Kawasaki V-Twin Engine, you know you are getting the best of the best. This unit brings more style, comfort, speed, and precision to create a perfectly manicured lawn with ease.
Not only is this unit fast, powerful and stylish, it’s also packed with:
15 Cutting positions ranging from 1.5 inches to 5 inches
X-Factor 3 Deck
Fully Welded Tubular Frame
23hp Kawasaki FR691 V-Twin Engine
Product Description:
| Model | AGU991270 |
| Engine Manufacturer | Kawasaki FR691V |
| Horsepower / Displacement | 23 HP / 726 CC |
| Drive System | Hydro-Gear ZT-3100 Transaxles |
| Fuel Capacity | 18.8 L |
| Ground Speed | 12.8 KM/H Forwards, 6.4 KM/H Backwards |
| Deck Size | 52″ |
| Deck Material | 10 GA. |
| Deck Construction | Fabricated X-Factor 3 |
| Number Of Spindles | 3 |
| Blade Tip Speed (FPM) | 18,000 FPM |
| Spindle Housing Material | Forged Aluminium |
| Spindle Bearings | Sealed Bearings |
| Deck Engagement | Electric Ogura |
| Deck Lift System | Foot Operated |
| Cutting Width | 52 Inch |
| Cutting Positions / Height | 15 Cutting Positions / 38.1 MM – 127MM |
| Wheels Front | 13 x 6.50-6 Smooth |
| Wheels Rear | 22 x 10.5 – 12 Turf |
| Seat | High Back Comfort W/ Seat Isolation & Padded Arm Rests |
| Foldable ROPS | Optional |
| Weight | 385.5 KG |
| Length | 2006.6 MM |
| Width | 1427.4 MM With Chute Up, 1709.4 MM With Chute Down |
| Height | 1193.8 MM |
| Warranty | 4 Year / 500 Hour |
