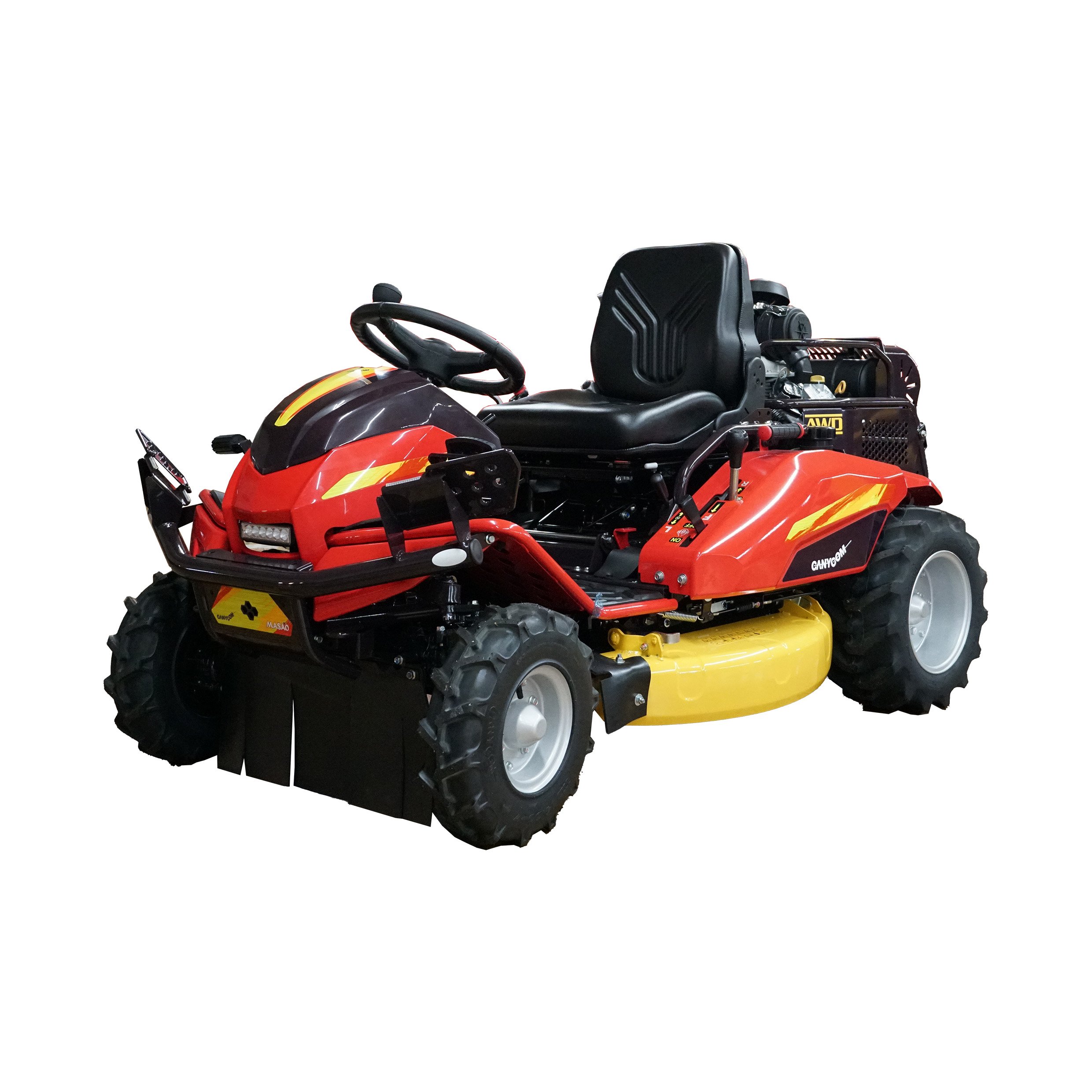

RAZORBACK RIDE ON MOWER 4WD CMX1402H All Terrain Mower
THIS ITEM IS PREORDER ONLY DUE TO SUPPLY SHORTAGES - PLEASE CONTACT US TO ORGANISE AN ON SITE DEMONSTRATION
This is the entry level 4WD unit, the CMX1402H that again runs the complete F1 package including the mechanical drive train to the front of the mower. The sharing of the resources based around this platform has allowed us to deliver a true mechanical 4WD mower, complete with a shaft driven deck, with all the safety and comfort features. This now means that acreage owners can have the same feature set as the commercial contractor, with safety and comfort at a remarkable price point.
14HP Honda GX390 engine
Chain driven over head camshaft engine
High & low ratio gearbox
Limited slip diff lock selected from the dashboard
Shaft driven cutter deck train
Hydrostatic transmission
Hand & foot control
Drum brake
Park brake
This is the entry level 4WD unit, the CMX1402H that again runs the complete F1 package including the mechanical drive train to the front of the mower. The sharing of the resources based around this platform has allowed us to deliver a true mechanical 4WD mower, complete with a shaft driven deck, with all the safety and comfort features. This now means that acreage owners can have the same feature set as the commercial contractor, with safety and comfort at a remarkable price point.
14HP Honda GX390 engine
Chain driven over head camshaft engine
High & low ratio gearbox
Limited slip diff lock selected from the dashboard
Shaft driven cutter deck train
Hydrostatic transmission
Hand & foot control
Drum brake
Park brake
Product Description:
This entry level all terrain mower will easily handle steep terrain and normal grass maintenance duties. It is capable of cutting saplings up to 36mm in diameter. It works beautifully as a quality maintenance machine for properties with demanding slopes.
The blade system uses the “Heartfelt Hirosaki” blades that are bolted to the mower – they are not using the tool-less system like the Big Twin engined mowers.
All the comfort features including:
- Steering wheel can be telescoped in or out
- Steering angle can be altered easily
- Three position suspension seat
- Seat can be moved forward & back
- The back of the seat is adjustable
Key Specifications
| Rated Net Output | 10.3Kw@3600rpm |
| Operating Mass | 340 Kg |
| Gradeability | 20 degrees |
| Stability Angle | 30 degrees left & right |
| Max Speed | 14 km/h |
| Cutting Width | 975 mm |
| Cutting Height | 0 – 150 mm |
| Fuel Tank | 6.1 litres |
| Drive Train | 4 wheel drive |
