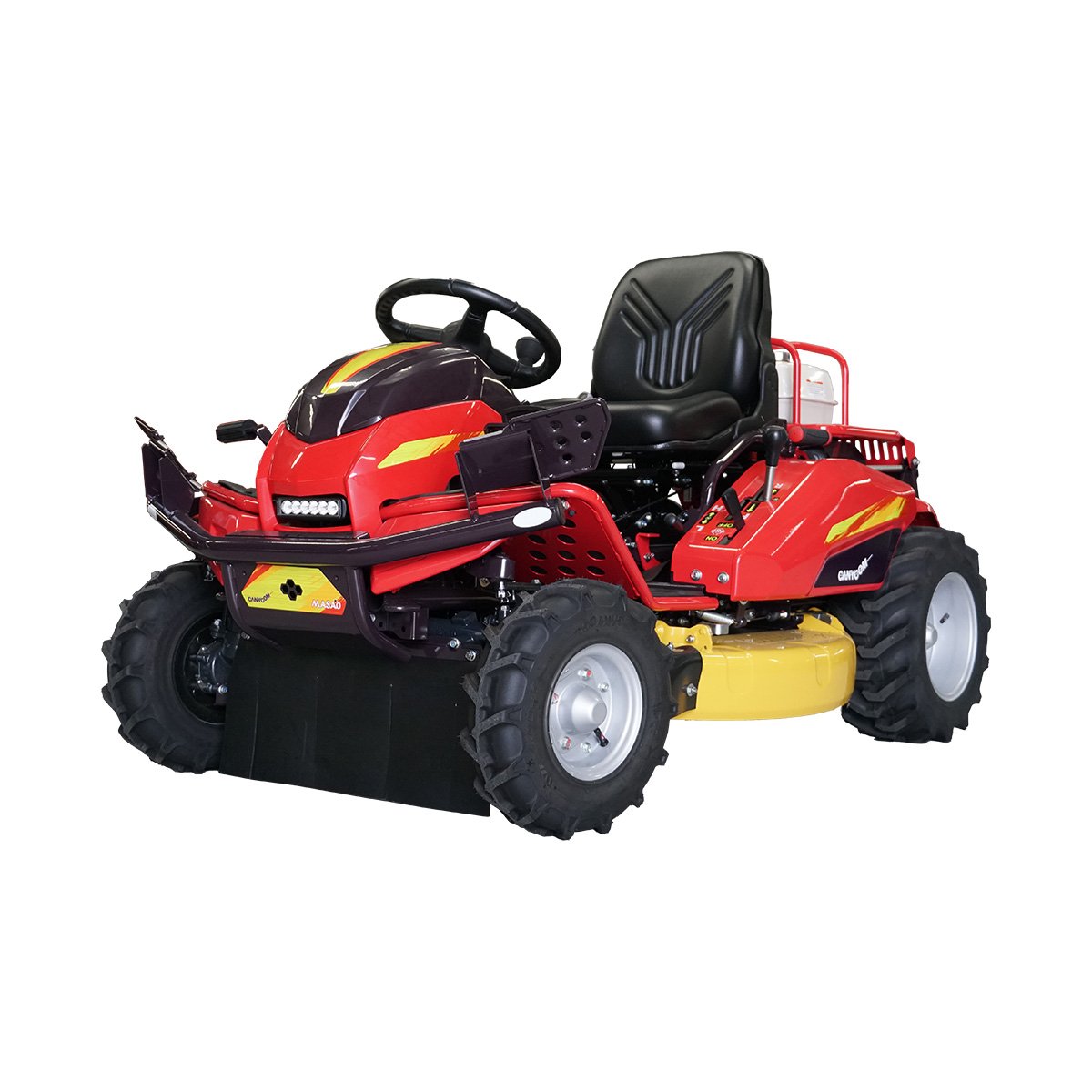

RAZORBACK RIDE ON MOWER 2WD CM1401H All Terrain Mower
The entry level Razorback CM1401H is a 14 horsepower, horizontal shaft Honda GX390 engine that has a chain driven overhead cam shaft. It is a two Wheel Drive unit that has all the features associated with the F1 platform, including shaft drive deck, high & low ratio gearbox, the complete safety system including drum brake and hydrostatic drive train that can be hand or foot operated.
2WD Hondat GS3990 engine
Chain driven over head camshaft engine
High & low ratio gearbox
Limited slip diff lock selected from the dashboard
Shaft driven cutter deck train
Hydrostatic transmission
Hand & foot control
Drum brake
Park brake
This is an incredible all terrain mower worthy of more than a sideways glance. The low seat height, low centre of gravity and “limited slip” diff lock allows the CM1401H to mow in rough terrain with complete safety and operator comfort. It is suitable for mowing grassed slopes and will do the work that most conventional ride on mowers struggle to accomplish. The safety factor is perhaps the greatest attribute of the Razorback CM1401H. So if you’re looking for a mower that will stay upright on slopes and won’t stop when it hits rough terrain, then this is the machine for you!
The blade system uses the “Heartfelt Hirosaki” blades that are bolted to the mower – they are not using the tool-less system like the Big Twin engined units.
All the comfort features including:
- Steering wheel can be telescoped in or out
- Steering angle can be altered easily
- Three position suspension seat
- Seat can be moved forward & back
- The back of the seat is adjustable
Key Specifications
| Rated Net Output | 11.7HP @3600rpm |
| Weight (fuel tank full) | 320 Kg |
| Gradeability | 15 degrees |
| Stability Angle | 30 degrees left & right |
| Max Speed | 13.2 km/h |
| Cutting Width | 975 mm |
| Cutting Height | 0 – 150 mm |
| Fuel Tank | 6.1 litres |
| Drive Train | 2 wheel drive |
