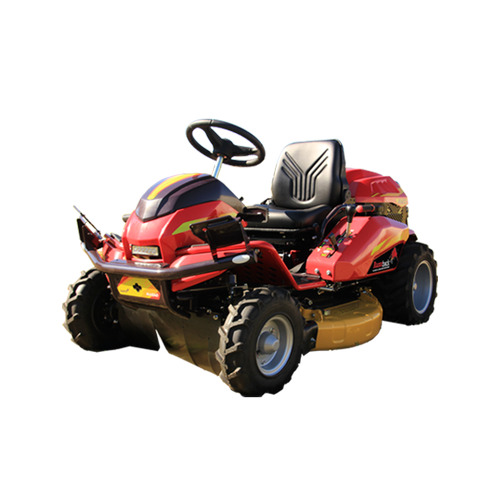

RAZORBACK RIDE ON MOWER 4WD CMX1808 All Terrain Mower
THIS ITEM IS PREORDER ONLY DUE TO SUPPLY SHORTAGES - PLEASE CONTACT US TO ORGANISE AN ON SITE DEMONSTRATION
The CMX1808 4WD Razorback has all the features you’d want on any all terrain mower. At the heart of the Razorback 4WD transmission is a mechanical drive shaft that runs from the rear diff to the front axle which drives the front planetary hubs, giving you the ultimate torque at the front of the mower – similar to a conventional off road 4WD vehicle. This puts the power where you need it on steep slopes, and assists with steering in extreme conditions. The positive diff-lock increases the traction in challenging climbing conditions.
18HP vanguard engine
Chain driven over head camshaft
Selectable 2WD & 4WD from the dashboard on the run
A cast iron compact tractor front axle set with planetary hubs
High & low ratio gearbox
Limited slip diff lock that is selectable from the dashboard
Shaft driven cutter deck train
Hydrostatic transmission
Foot control for forward & reverse movement
Drum brakes and park brake
NO DECK BELT!
The CMX1808 4WD Razorback has all the features you’d want on any all terrain mower. At the heart of the Razorback 4WD transmission is a mechanical drive shaft that runs from the rear diff to the front axle which drives the front planetary hubs, giving you the ultimate torque at the front of the mower – similar to a conventional off road 4WD vehicle. This puts the power where you need it on steep slopes, and assists with steering in extreme conditions. The positive diff-lock increases the traction in challenging climbing conditions.
18HP vanguard engine
Chain driven over head camshaft
Selectable 2WD & 4WD from the dashboard on the run
A cast iron compact tractor front axle set with planetary hubs
High & low ratio gearbox
Limited slip diff lock that is selectable from the dashboard
Shaft driven cutter deck train
Hydrostatic transmission
Foot control for forward & reverse movement
Drum brakes and park brake
NO DECK BELT!
Product Description:
The twin cylinder mower gives it far more cutting power for handling very extreme, dense undergrowth. It easily manages to cut all of the clumping variety of grasses, most canes and saplings up to 36mm in diameter. This includes most of the usual Australian pests like Tobacco Bush, Lantana, and small Camphor Laurel saplings. Most woody material is easily cut and destroyed as the power is more than adequate in most cutting situations.
All the comfort features including:
- Steering wheel can be telescoped in or out
- Steering angle can be altered easily
- Three position suspension seat
- Seat can be moved forward & back
- Rear seat angle can be adjusted
Key Specifications
| Rated Net Output | 18.3 HP @3600rpm |
| Weight – fuel tank full | 360 Kg |
| Gradeability | 25 degrees |
| Stability Angle | 30 degrees left & right |
| Max Speed | 13.8 km/h |
| Cutting Width | 975 mm |
| Cutting Height | 0 – 130 mm |
| Fuel Tank | 20 litres |
| Drive Train | 4 wheel drive |
